Spring MVC 组件配置 之 整合Swagger UI 开发后台接口动态管理（自定义样式调整）（springmvc-swagger）

笔者的文章中已经有关于springfox和swagger的整合，但是有的项目需要整合静态资源后自定义调整样式，下面提供一种自定义样式的swagger整合方式。 该整合方式对于SpringMVC低版本比较适合、但是swagger的版本已经更新到3.0+了，所以仅供参考和学习。

---

Spring MVC 组件配置 之 Swagger整合（自定义样式调整）（springmvc-swagger）

- swagger静态资源和SpringMVC项目整合
- 支持自定义样式开发
- 基于swagger2.2.10版本开发

开发环境

- tomcat 7.0.78
- jdk 1.7+
- spring 4.3.13.RELEASE

SwaggerConfig 配置类

package cn.com.showclear.config;

import com.mangofactory.swagger.configuration.SpringSwaggerConfig;
import com.mangofactory.swagger.models.dto.ApiInfo;
import com.mangofactory.swagger.plugin.EnableSwagger;
import com.mangofactory.swagger.plugin.SwaggerSpringMvcPlugin;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;

/**
 * Swagger初始化配置文件
 * @author YF-XIACHAOYANG
 * @date 2017/12/26 10:13
 */
@EnableWebMvc
@EnableSwagger
@ComponentScan(basePackages = "cn.com.showclear.activiti.controller.data")
public class SwaggerConfig {

    private SpringSwaggerConfig springSwaggerConfig;

    /**
     * Required to autowire SpringSwaggerConfig
     */
    @Autowired
    public void setSpringSwaggerConfig(SpringSwaggerConfig springSwaggerConfig)
    {
        this.springSwaggerConfig = springSwaggerConfig;
    }

    /**
     * Every SwaggerSpringMvcPlugin bean is picked up by the swagger-mvc
     * framework - allowing for multiple swagger groups i.e. same code base
     * multiple swagger resource listings.
     */
    @Bean
    public SwaggerSpringMvcPlugin customImplementation()
    {
        return new SwaggerSpringMvcPlugin(this.springSwaggerConfig)
                .apiInfo(apiInfo())
                .includePatterns(".*?");
    }

    private ApiInfo apiInfo()
    {
        ApiInfo apiInfo = new ApiInfo(
                "Scooper Activiti REST-API",
                "工作流后台接口测试",
                "My Apps API terms of service",
                "xiazhaoyang@live.com",
                "web app",
                "My Apps API License URL");
        return apiInfo;
    }
}

spring-mvc.xml

<!-- 将 springSwaggerConfig加载到spring容器 -->
<bean class="com.mangofactory.swagger.configuration.SpringSwaggerConfig" />
<!-- 将自定义的swagger配置类加载到spring容器 -->
<bean class="cn.com.showclear.config.SwaggerConfig" />
<!-- don't handle the static resource -->
<mvc:default-servlet-handler></mvc:default-servlet-handler>

spring-servlet.xml

 <!-- 静态资源文件映射，不会被Spring MVC拦截 -->
 <mvc:resources mapping="/swagger/**" location="/swagger/" />

web.xml

<!-- 配置Spring核心控制器 -->
<servlet>
    <servlet-name>springmvc</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <!--可以不配置.默认所对应的配置文件是WEB-INF下的{servlet-name}-servlet.xml，这里便是：spring-servlet.xml
    -->
    <init-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:/config/spring/spring-servlet.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
</servlet>
<!--这里可以用 / 但不能用 /*，拦截了所有请求会导致静态资源无法访问，所以要在spring-servlet.xml中配置mvc:resources
    -->
<servlet-mapping>
    <servlet-name>springmvc</servlet-name>
    <url-pattern>/</url-pattern>
</servlet-mapping>

index.html

/*添加样式*/
<style type="text/css">
.hide{
  display:none;
}
</style>
/*调整路径*/
 url = "/scooper-activiti/api-docs";
 /*隐藏头部*/
 <div id='header' class="hide">

maven 依赖

<!--swagger-->
<dependency>
    <groupId>com.mangofactory</groupId>
    <artifactId>swagger-springmvc</artifactId>
    <version>0.9.5</version>
</dependency>

<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-annotations</artifactId>
    <version>2.4.4</version>
</dependency>

<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>2.4.4</version>
</dependency>

<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-core</artifactId>
    <version>2.8.9</version>
</dependency>

项目目录结构

REFERENCE

1、swagger整合
https://www.cnblogs.com/jtlgb/p/6734177.html
https://www.2cto.com/kf/201604/499072.html
http://blog.csdn.net/hayre/article/details/51027201
http://www.mamicode.com/info-detail-525592.html

2、Can't read swagger JSON from http...
http://blog.csdn.net/shecanwin/article/details/55667102
http://blog.csdn.net/xyw591238/article/details/51939111

3、No qualifying bean of type 'com.mangofactory.swagger.configuration.SpringSwaggerConfig' available: ...
https://www.cnblogs.com/driftsky/p/4952918.html

4、swagger文件上传的写法
http://blog.csdn.net/qq_23167527/article/details/78559096

swagger静态资源文件下载

1、版本下载列表
https://github.com/Yiyuery/swagger-ui

2、2.2.10下载链接
https://github.com/swagger-api/swagger-ui/tree/v2.2.10

注意：swagger 版本选择 2.0+ 版本 [2.2.10]

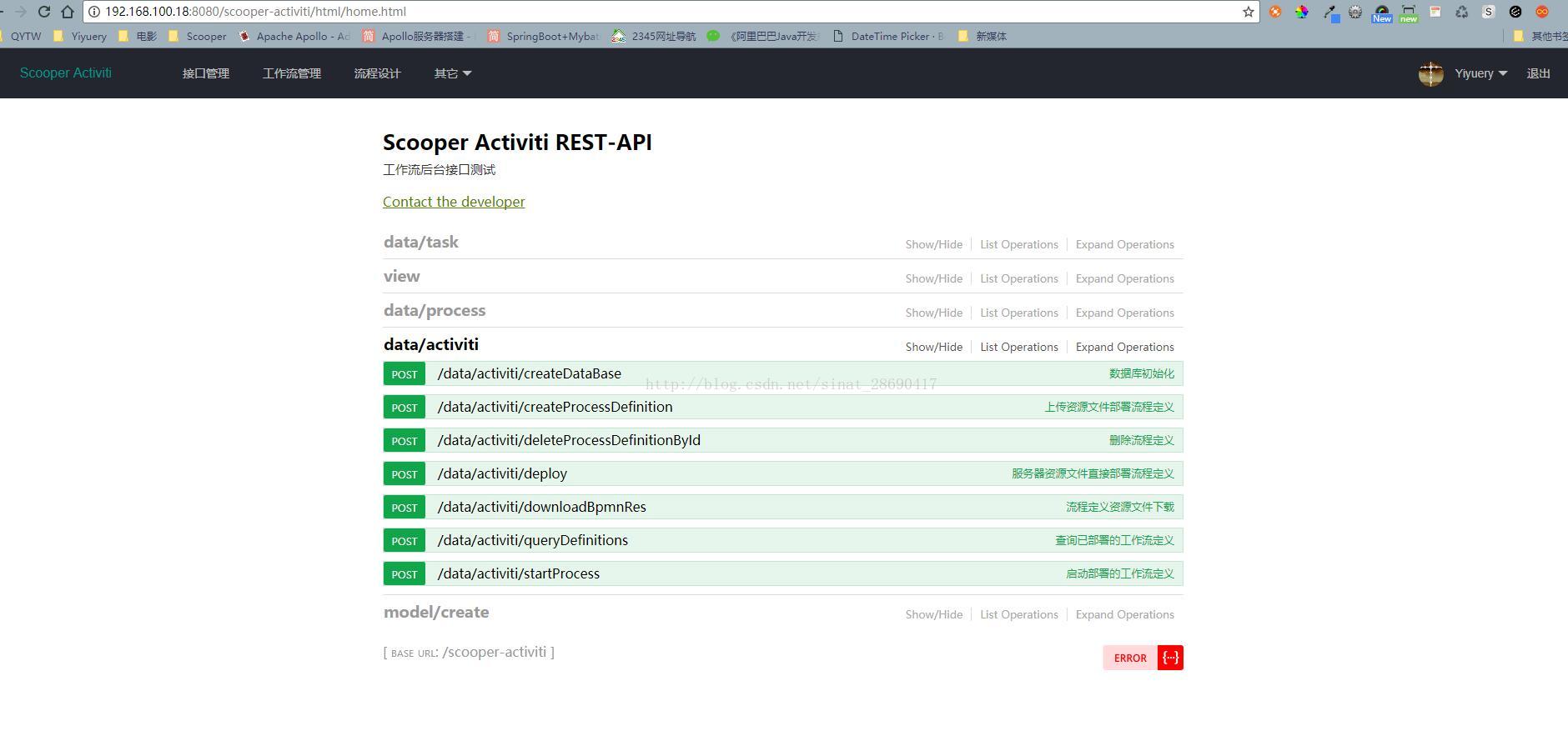

效果
